12V/24V auto working MPPT solar charge controller

FOB Reference Price:Get Latest Price
US $95 / Pieces | 5 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
UNISOLAR
Model Number:
Tracer 3210A
Application:
Solar System Controller
Rated Voltage:
12/24V
Maximum Current:
30A
Product name:
12V/24V auto working MPPT solar charge controller
Discharging current:
no
Max.PV Voc:
100V
Nominal system voltage:
12/24V auto work
Rated battery current:
30A
Rated load current:
30A
Max. PV open circuit voltage:
100V
Max. battery voltage:
32V
Max. PV input power:
390W,780W
Overall dimension:
228x164x55mm
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
strong carton
Port
Qingdao,Tianjin
Lead Time :
within 7-10 working days after the order

12V/24V auto working MPPT solar charge controller

Product Description



Tracer A series adopts common positive design and advanced MPPT control algorithm. The products can track the MPP point fast and accurately in any situation which will improve energy efficiency and obtain the maximum solar energy.

Features:
• Advanced MPPT technology
•
High tracking efficiency no less than 99.5%
•
Peak conversion efficiency of 98%
•
Ultra-fast tracking speed
•
Accurately recognizing and tracking of multiple power point
•
Multi-function LCD displays system information intuitively
•
User programmable for battery types, load control etc.
•
3-Stage charge with PWM output
•
Common positive grounding design
•
RS485 port with industrial standard MODBUS open architecture
•
Fully programmable function via PC software or remote meter

Electronic Protections:
• PV reverse polarity protection
• PV short circuit protection
• PV over current alarm protection
• Battery overcharge protection
• Battery over discharge protection
• Battery reverse polarity protection
• Load short circuit protection
• Load overload protection
• Overheating protection



Specifications



ModelTracer1210ATracer2210ATracer3210ATracer4210A
Nominal system voltage12/24V auto work
Rated  battery current10A20A30A40A
Rated  load current10A20A30A40A
Max. PV open circuit voltage100V
Max. battery  voltage32V
Max. PV input power130W  (12V)260W  (12V)390W  (12V)520W  (12V)
260W  (24V)520W  (24V)780W  (24V)1040W  (24V)
Equalize charging voltageGel: 14.2V,  Sealed: 14.4V,  Flooded: 14.6V
Boost charging voltageGel: 14.2V,  Sealed: 14.4V,  Flooded: 14.6V
Float charging voltageGel /Sealed /Flooded: 13.8V
Low voltage reconnect voltageGel /Sealed /Flooded: 12.6V
Low voltage disconnect voltageGel /Sealed /Flooded: 11.1V
Self-consumption≤20mA(12V)  ≤16mA(24V)
GroundingCommon positive
Temp. compensation-3mV/℃/2V
Communication PortRS485 / RJ45 interface
Working temperature-25℃~+45℃
Storage temperature-35℃~+80℃
Humidity≤95% N.C.
EnclosureIP30
Overall dimension172x139x44mm172x139x44mm228x164x55mm252x180x63mm
Terminal4mm210mm210mm210mm2
Net weight0.6kg1.1kg1.2kg1.9kg



Packaging & Shipping



 Our solar charge controller can be packed as follows:

ModelProduct size(cm)PCS/CTNCarton size(cm)
Tracer1210A19.5*15.2*6.22448*41.5*27.5
Tracer2210A24.3*16.4*71251*36*23.5
Tracer3210A25.1*17.7*7.31253*38*24.5
Tracer4210A27.5*19.3*8.1641*29.5*27

Packing (2).jpg

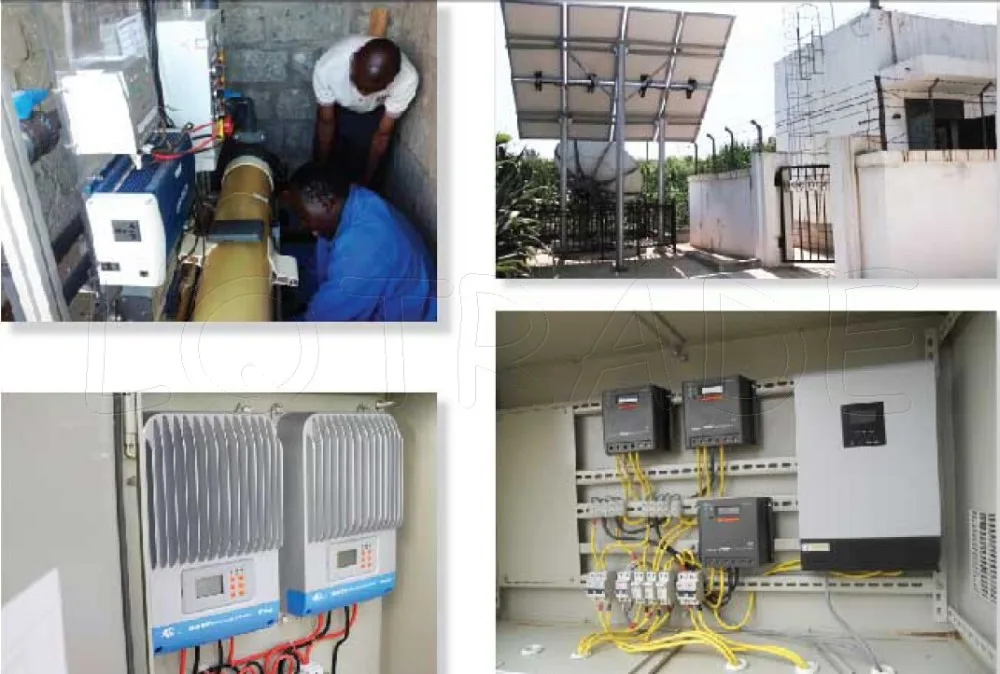

Application Scope



application scope (3).jpg
