72W amorphous photovoltaic flexible solar module

FOB Reference Price:Get Latest Price
US $2.3-3 / Watts | 20 Watt/Watts (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
LQTRADE
Model Number:
PVL72
Material:
Amorphous Silicon
Size:
2849*394*4mm, 2741MM*378MM
Number of Cells:
11L
Max. Power:
72W
Keywords:
72W amorphous photovoltaic flexible solar module
Brand:
JN-UNISOLAR
Weight:
2.8kg
Peak power:
72w
VMPP:
24.2V
IMPP:
5.1A
Open circuit volt:
48.4V
Short circuit current:
5.1A
Thickness:
1.5MM(2.5mm with back adhesive tape)
Supply Ability
Supply Ability:
15000000 Watt/Watts per Year
Packaging & Delivery
Packaging Details
Strong carton, wooden pallets
Port
SHANGHAI/SHENZHEN.
Lead Time :
3~7 days for small order, 15~30 days for bulk order

72W amorphous photovoltaic flexible solar module



adhesive-backed flexible amorphous photovoltaic solar panel
sizes large <3,5 x
wide< 0,4 mts
weight < 4kgrs ,
vpm 15,4v ,
isc less 4,5 amp ,
voc less 46,5v  .
Certified UL, IEC 61646 and IEC 61730, IEC 61215 ,CE
Product warranty: Free from defects in materials and workmanship for 5 years.
Power warranty:at least 20 years.
Reliability testing:
-Temperature cycling test;
-thermal shock test
-.temperature and humidity testing (damp heat test);
-electrical insulation testing;
-torsion and wind charge testing;
-hailstone impact and salt spray testing;
-showing light and water testing.



The Triple-Junction PV products have significant advantages when compared to crystalline technology PV products. They are flexible, lightweight, and have better performance at actual operating temperatures, under lower light intensities, and even when damaged (unlikely due to the durability of the PV Laminate).


By-pass diodes are connected across each cell, allowing the modules to produce power even when partially shaded or soiled. Each power module has a means of easily making the required electrical connections to create compatible system voltages. These interfaces include weather-tight, quick connect plugs, pre-connected to UV protected wires approporiate for all applications from simple single module requirements to high voltage grid-connected applications.The resulting modules are exceptionally durable.Flexible PV modules can be bonded to conventional metal roofing panels, single-ply membranes, and modified bitumen roofing material or they can be fabricated into flexible roofings shingles.


Thin film solar cells are made in a roll-to-roll vacuum deposition process on a continuous roll of stainless steel sheet. The result is a unique, flexible and light weight cell. The solar cells are arranged in a series string and encapsulated in UV stabilized and weather-resistant polymers to form PV Laminates. The polymer encapsulation includes at the front side EVA and the fluoro-polymer ETFE(e.g. TEFZEL from DuPont).
Each solar cell is composed of three semiconductor junctions stacked on top of each other, forming three different sub-cells. The bottom sub-cell absorbs the red light; the middle cell the yellow/green light and the top cell absorbs the blue light. This light spectrum splitting capability is the key to higher efficiency, especially at lower insolation levels and under diffuse light.Each Thin film PV modules uilizes the unique triple-junction thin film silicon solar cells from United Solar Ovonic LLC, thin film PV modules yield unprecedented performance.

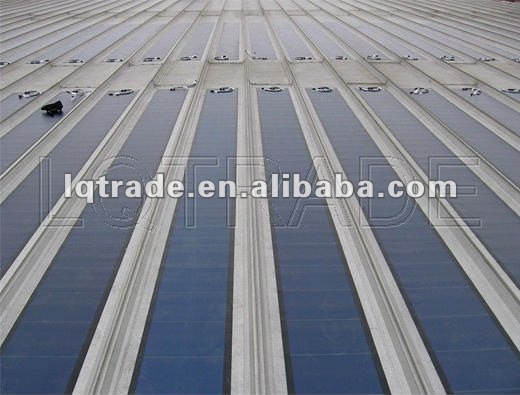

200811071143382.jpgThin film solar install on corrugate roof02.jpg

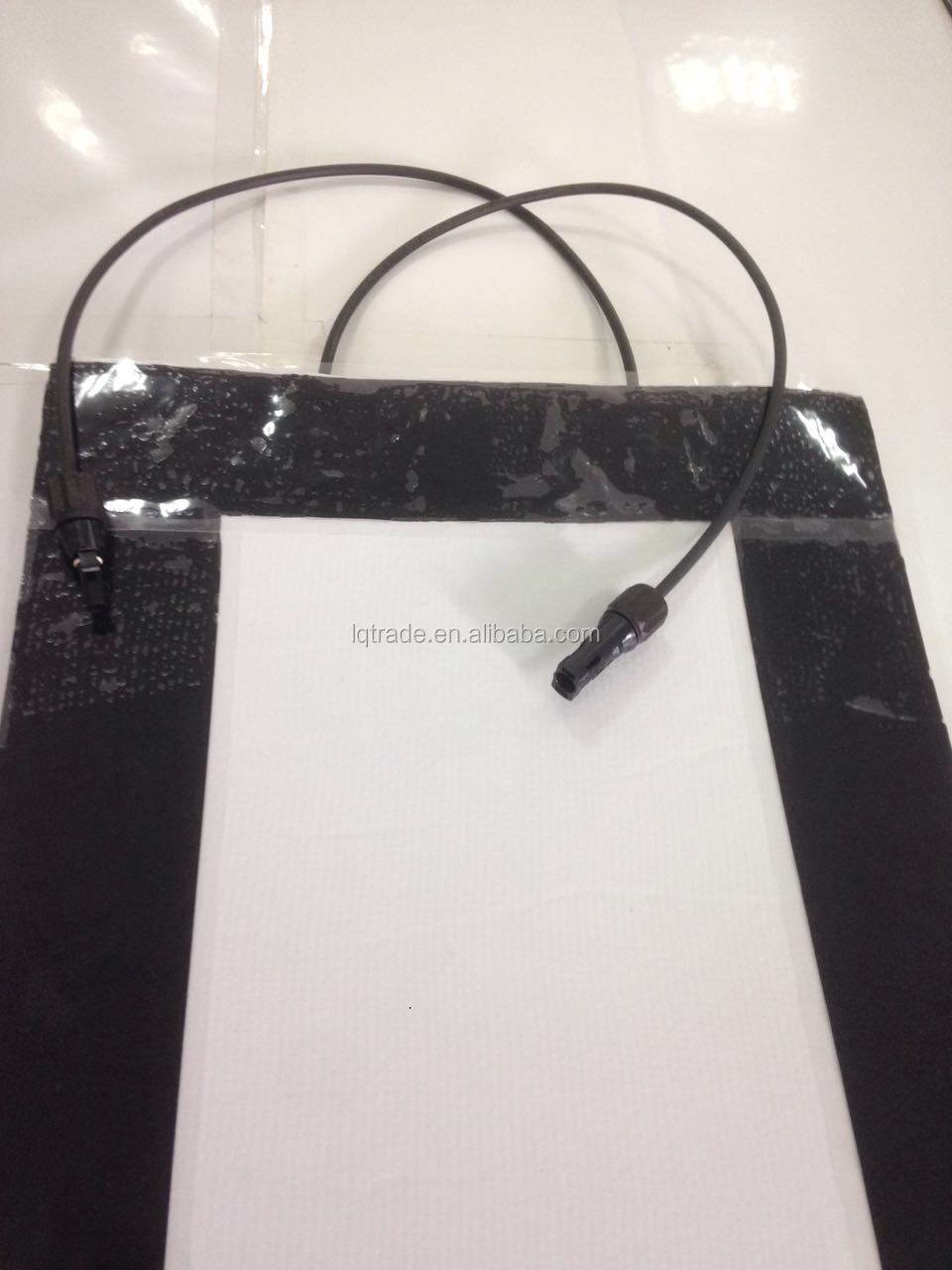

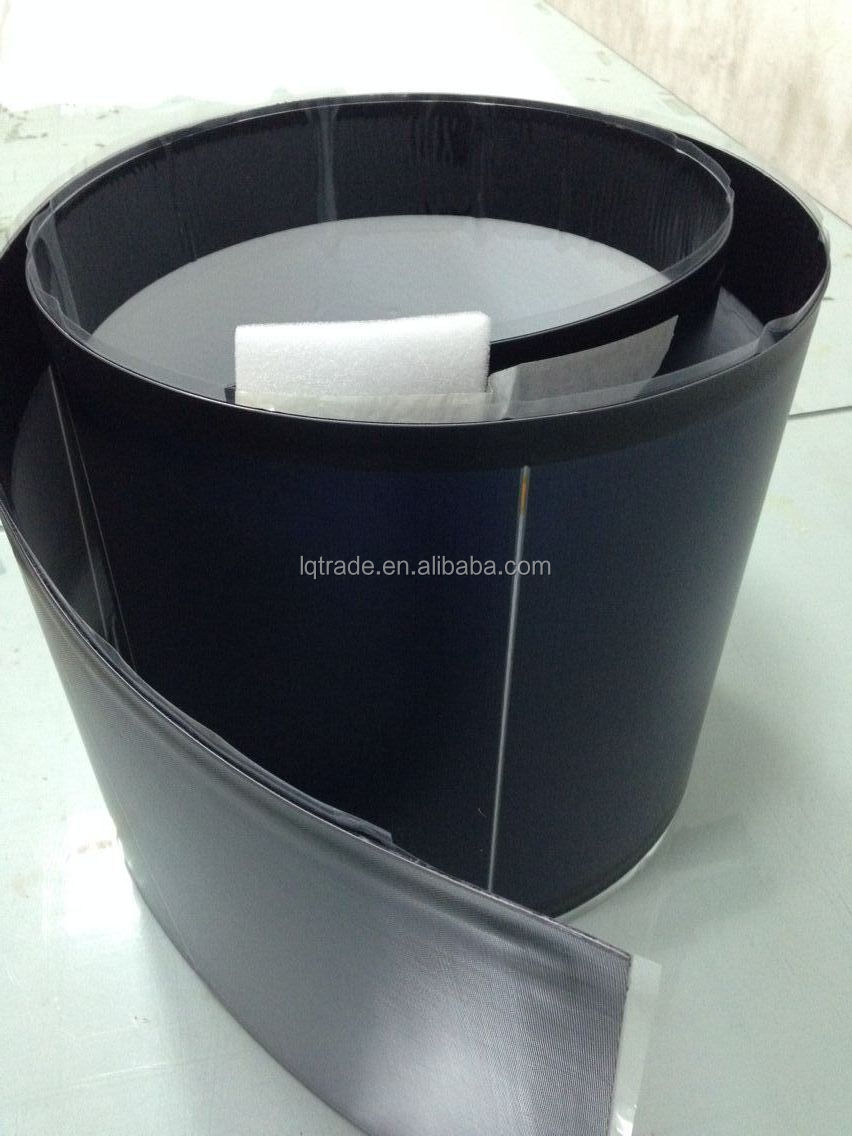

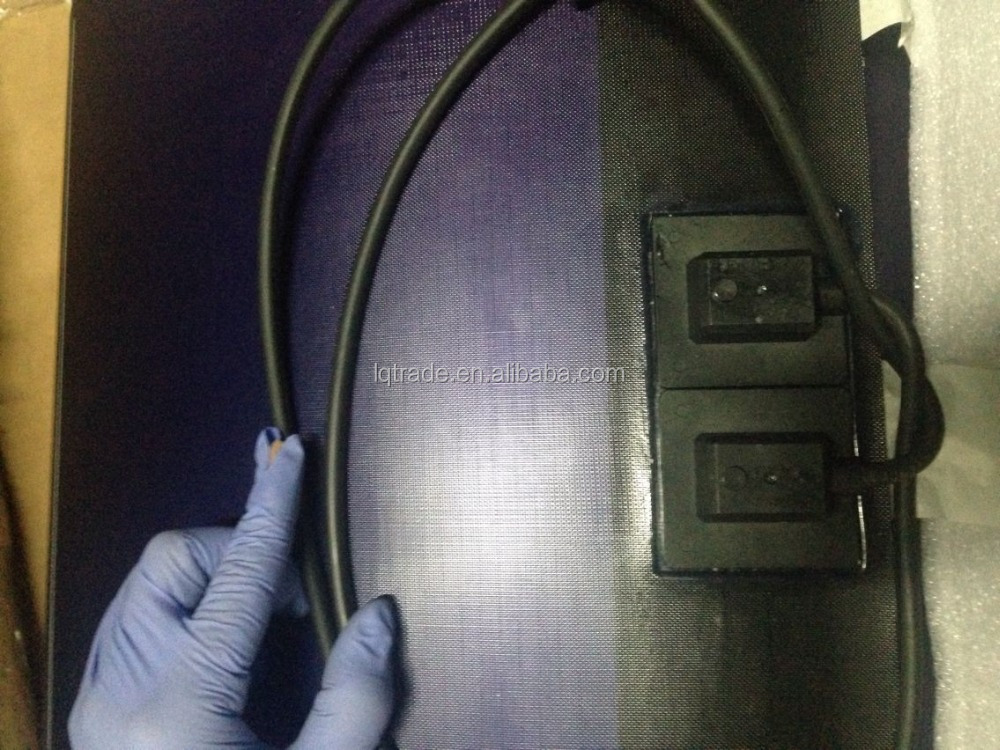

_storage_sdcard0_tencent_MicroMsg_ce6e2d13024f39dd8a3de66450f8bd89_image2_7c_10_7c106546e1bd1b93007a976c7c347400.jpg72W flexible solar panel-02.jpgFlexible solar panel-1.jpg
