Linquan Ladle Nozzle Brick

FOB Reference Price:Get Latest Price
US $3-50 / Pieces | 100 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Shape:
Brick, Casting pressing
Material:
Alumina Block
SiO2 Content (%):
0.5
Al2O3 Content (%):
90%
MgO Content (%):
0.2%
CaO Content (%):
0.1%
Refractoriness (Degree):
1770°< Refractoriness< 2000°
CrO Content (%):
None
SiC Content (%):
None
Model Number:
QC LV CS LS FLC
Brand Name:
Linquan, Emei, Siwei, lqtrade
Temp:
1750
Raw material-1:
Tabular alumina
Raw material-2:
Bauxite--High quality
Ladle capacity:
10-150tons
Fired-:
fired or unfired
A.p.:
14%
B.D.:
2.90
Serive life:
4-6 heats
Package:
Ply-wooden case
Supply Ability
Supply Ability:
50000 Ton/Tons per Year
Packaging & Delivery

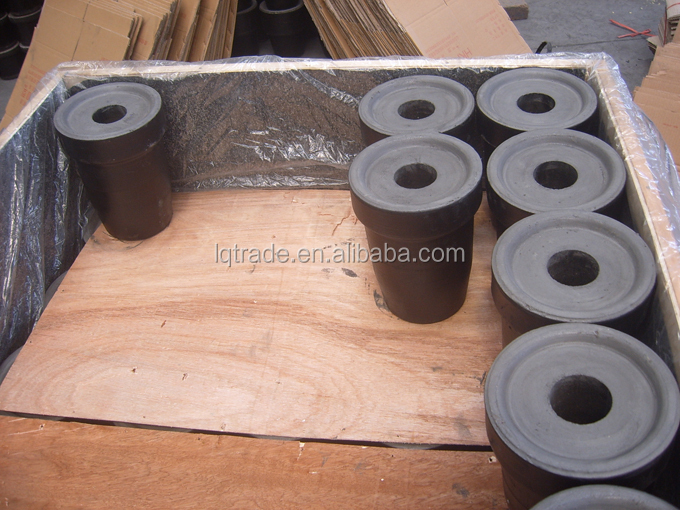

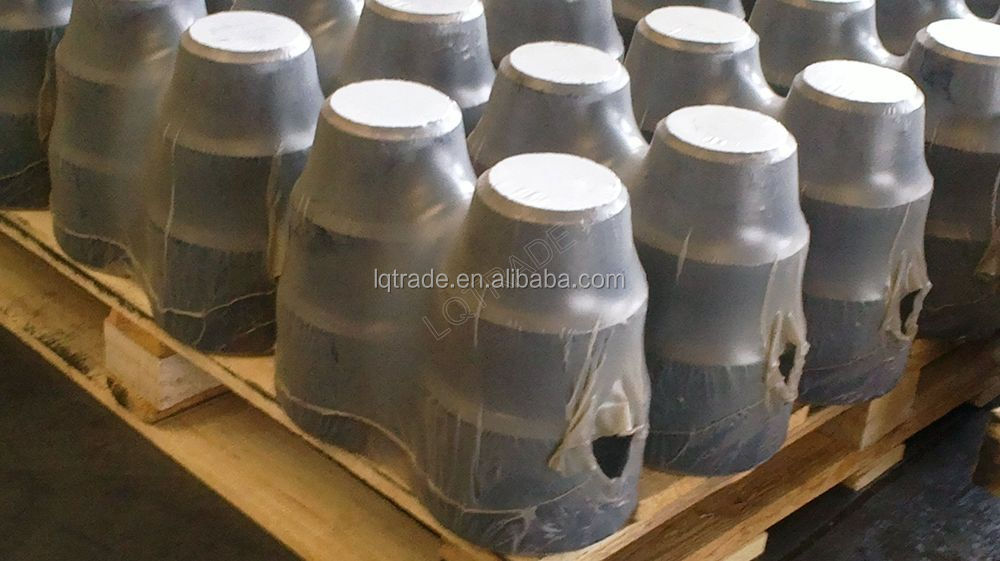

Packaging Details
1. Wooden Pallet
2.Wooden case
3.Seaworthy standard packing
4.Further packing based on customer's requirements
Port
Qingdao, Tianjin.etc

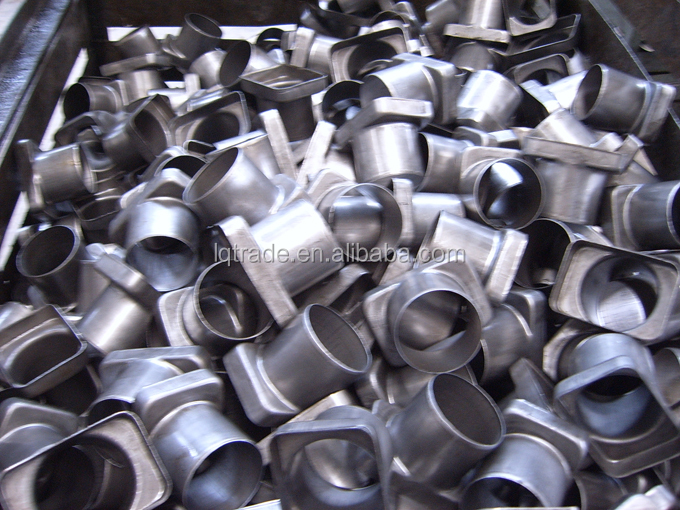

Ladle Nozzle Brick



the tundish replaced slide matchs metering nozzle changer,which is our company's patent product. it can adapt any continuous casting products of square steel. the third generation product can work with the stopper coordination to pour each kind of alloy steel and so on .



1. Slide plate and nozzles --Model:

1QC 2QC, 1BK,2BK, C51. Salfflow, B250, LQ60/80/, LS50/70/90, LQ/FLOCON 4200/6300/ B50/250, LQLV50/150/180 .... .ETC.

Most for smal-size, middle size and large size ladles.

2. Service Result for Slide Plate and ladle nozzles:


Generally the slide gate plate Service life from 1 to 6 heats due to different mateiral and different steel-making condition;

3. Type of production design

1) High Temperature Burnt Slide Plate
High preformance ladle slide gate refractories adopts tabular alumina, carbonaceous material and zirconia-containing material as main raw materials, adds in high performance antioxidants, uses phenolic resin as binder, formed under high-pressure and burned under high temperature. Mainly used in large and medium-sized ladles.

2) Low Temperature Burnt Slide Plate
Tabular alumina, zirconia-containing material and spinel as major raw materials, adding in special metal, using phenolic resin as binder, being burned under low temperature to produce the products, Mainly used in small and medium-sized ladle.

3) Unburned Slide Plate
Without the process of burned, tar impregnated and distilled, simple processing. Mainly used in small and medium-sized ladle.

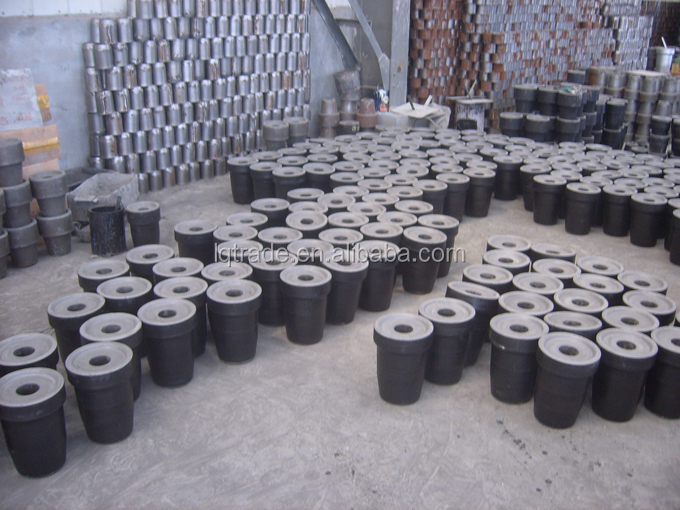

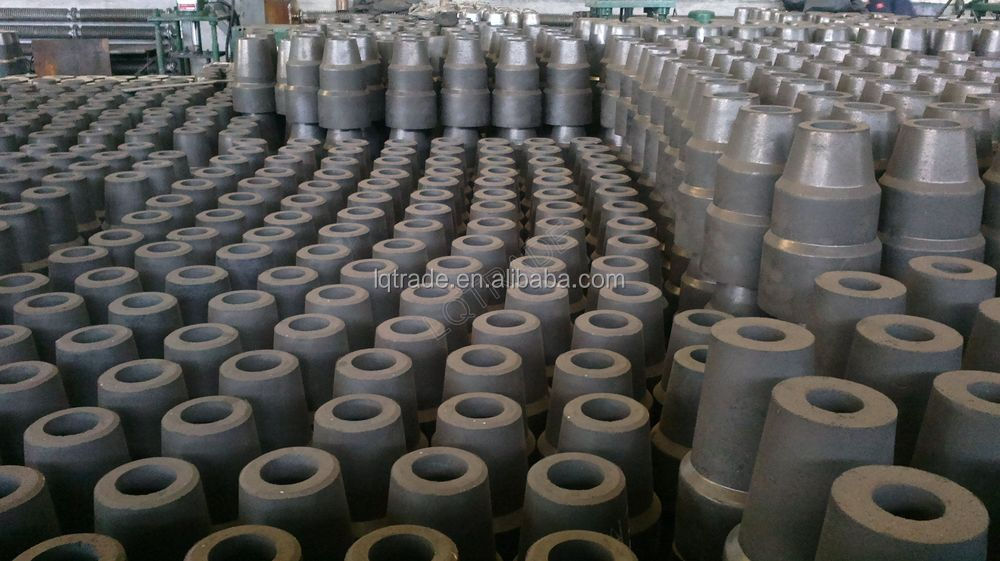

4)  Ladle nozzle:

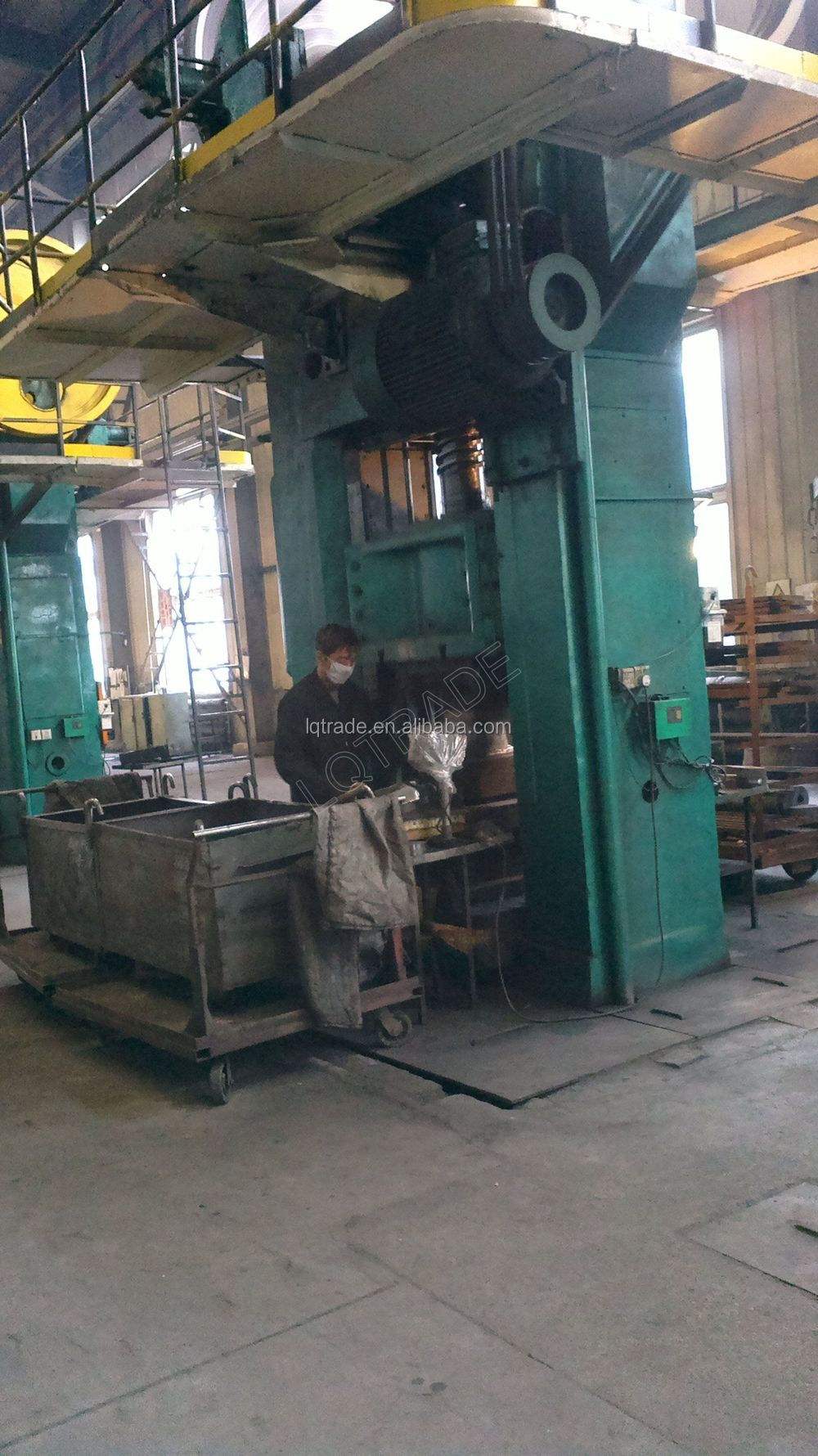

Mostly produce by pressing.  but some special will be produce by casting.

Raw material is tabular alumina


4. Simiple production introduction

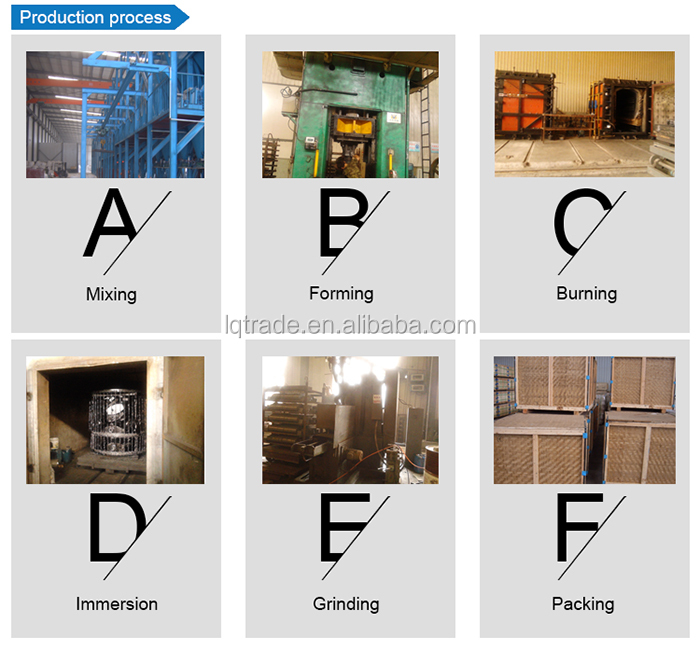

Our Slide Plate refractory adopts HIgh quality bauxite materiao , also takes tabular alumina, carbonaceous material and zirconia-containing material as main raw materials, adds in high performance antioxidants, uses phenolic resin as binder, formed under high-pressure and burned under high temperature. The slide plates have the advantages of high strength, good erosion resistance, thermal shock resistance and good stability etc., mainly used in large and medium-sized ladle.
































 FLC-LS-CS.JPG'



Ladle slide plate-1.jpg Slide gates-2.jpg



.jpg
